Anti-interference RJ45 Cable

Specifications

Features List

ideal solution in case of limited space

especially suitable for shielded and unshielded class EA systems

fully shielded Cat.6 patch cord AWG 26/7

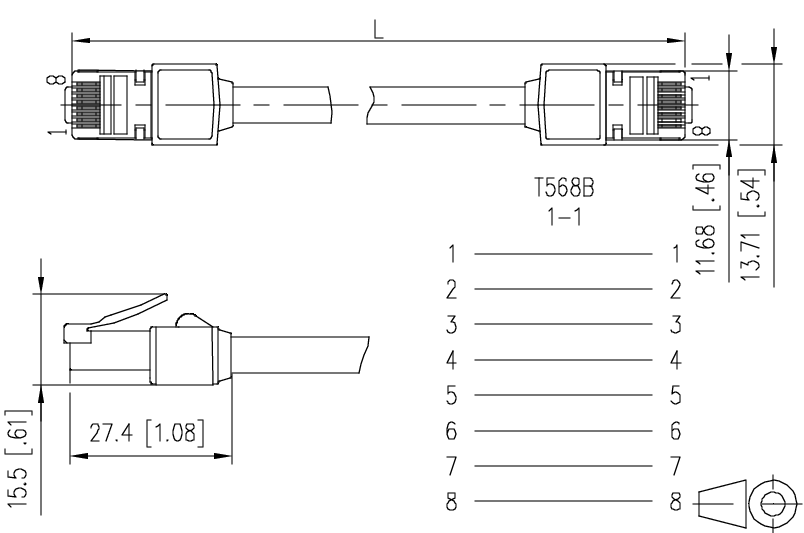

two shielded RJ45 connectors, 1:1 assignment

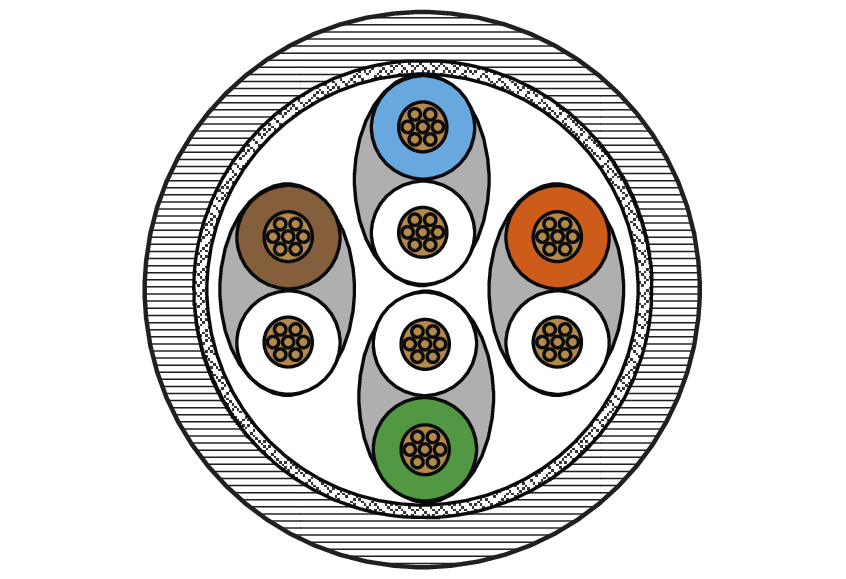

cable type: S/FTP 4x2xAWG 26/7 PIMF

cable sheath: PUR-RUB

very short cable boot

especially suitable for VoIP terminal devices

bending radius of up to 10 mm possible

considerably longer durability than standard patch cords

up to 8500 movement cycles possible under load

Applications / Use Cases

Core Application Fields

• Structured Building Cabling

• High-Speed Local Area Networks (LAN)

• Office & Enterprise Networks

• Telecommunication Outlets & Workstations

• Space-Constrained Installation Environments (underfloor boxes, shallow wall outlets, narrow cable ducts)

Specific Target Applications & Technologies

• VoIP (Voice over IP) Telephony & IP Communications

• Network Switches & Patch Panel Connections

• High-Density Server Racks & Cabinet Cabling

• High-Flexibility Installations (extremely tight bending radiuses down to 10 mm)

• Dynamic Applications (frequent cable movements or relocations up to 8,500 cycles)

• Remote Powering (Power over Ethernet - PoE, PoE+, and UPoE)
